RL-MUH88A2-H2

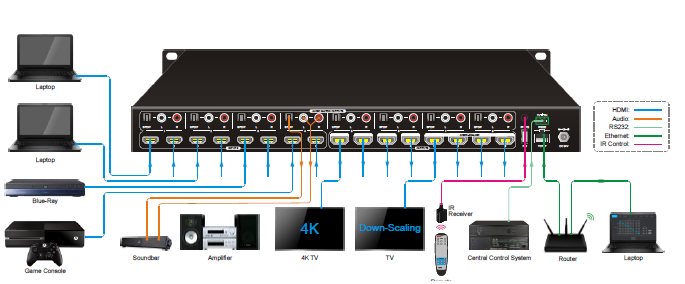

RL MUH88A2 H2 is a professional 8 x 8 HDMI 2.0 Matrix Switcher with Audio Matrix. It includes 8 HDMI inputs, 8 HDMI outputs and the last four outputs with down scaling function which is designed for switching four HDMI2.0 and HDCP2.3 compliant signals. It also features 8 SPDIF and 8 analog audio outputs for audio matrix. The matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources. It not only supports bi directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.

SKU: 6153938460445-1-1-1-1-1-1-1 Category: Matrix Tag: matrixs

Product Description

8×8 HDMI 2.0 Matrix Switcher.
Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.
Audio Matrix, audio out can be de embedded fro m arbitrary input or output.
Individual volume adjustment on each L+R output.
Supports 4K to 1080p down scaling up to 4 outputs.
HDMI out provides 2.5W to power Active Optical Cable (AOC).
HDMI Out put support up to 5V500mA for AO C cable
Controllable by fr ont panel, IR, RS232 and TCP/IP.

Specification

Input	8 x HDMI
HDMI Input connector	8 x Type-A female HDMI
Input Resolution	Up to 4K@60Hz 4:4:4, HDR
HDMI Output Resolution	Up to 4K@60Hz 4:4:4, HDR10 and Dolby Vision
HDMI Output	Supports up to 5V500mA for AoC cable
HDMI Version	Up to 2.0
HDCP Version	Up to 2.3
HDMI Audio Signal	LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.
Digital Audio Output	–
Output	8 x Digital SPDIF audio
Output Connector	8 x Toslink connector
Digital SPDIF Audio Format	Supports PCM, Dolby Digital, DTS, DTS-HD
Frequency Response	20Hz – 20KHz,±1dB
Max Output Level	±0.05dBFS
THD+N	< 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
SNR	> 90dB, 20Hz-20KHz bandwidth
Crosstalk Isolation	< -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping)
Noise	-90dB
Control	–
Control port	1 x FIRWARE, 1 x IR EYE, 1 x RS232, 1 x TCP/IP
Control Connector	1 x USB A, 1 x 3.5mm jack, 1 x 3 pin terminal block, 1 x RJ45
