RL-HD-44-H2
RL-HD-44-H2 is a HDMI V2.0 Matrix Switcher. It is a 4 HDMI inputs and 4 HDMI outputs matrix switcher; It supports resolution up to 4K@60Hz 4:4:4 & HDCP2.2. It can be controlled via front panel buttons, IR remote and RS232 commands.
RL-HD-44-H2
Product Description
- Supports resolutions up to 4K@60Hz 4:4:4, including 1080p 3D video.
- Fully compliant with HDMI V2.0 and HDCP 2.2 specifications.
- Supports 4K to1080p down-scaling for each independent output to compatibility with the legacy 1080p displays.
- Smart EDID management.

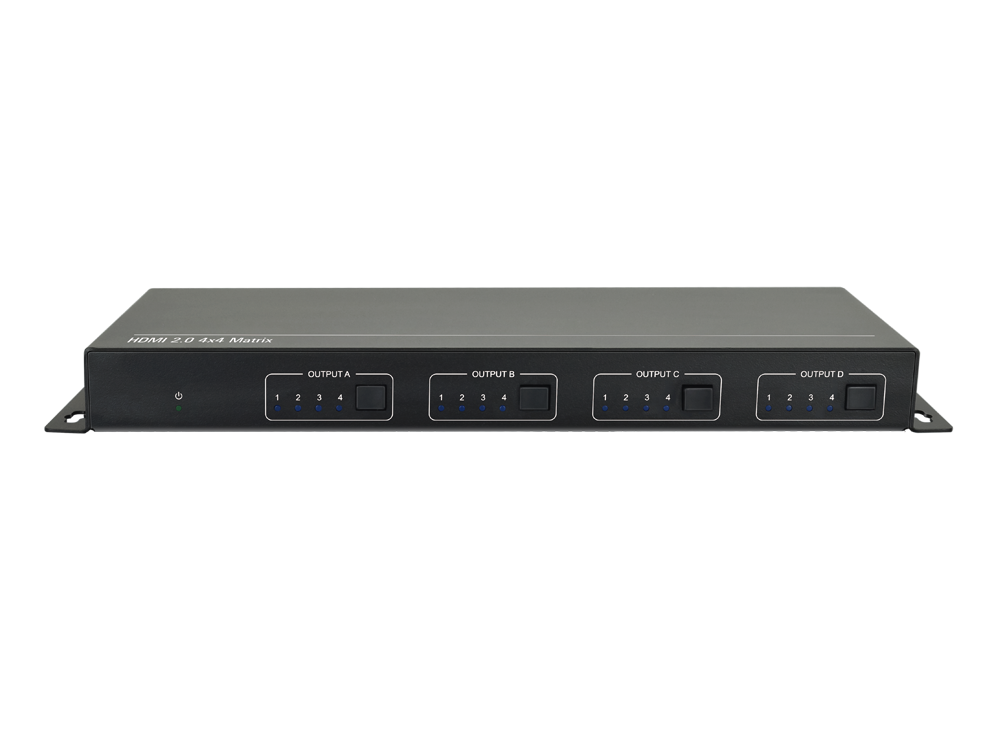

- Supports front panel buttons, IR remote and RS232 control.
Specification
| Video Input | – |
|---|---|
| Input | (4) HDMI |
| Input Connector | (4) female type A HDMI |
| Video Output | – |
| Output | (4) HDMI |
| Output Connector | (4) female type A HDMI |
| HDMI Version | 2.0 |
| HDCP Version | 2.2 |
| Control | – |

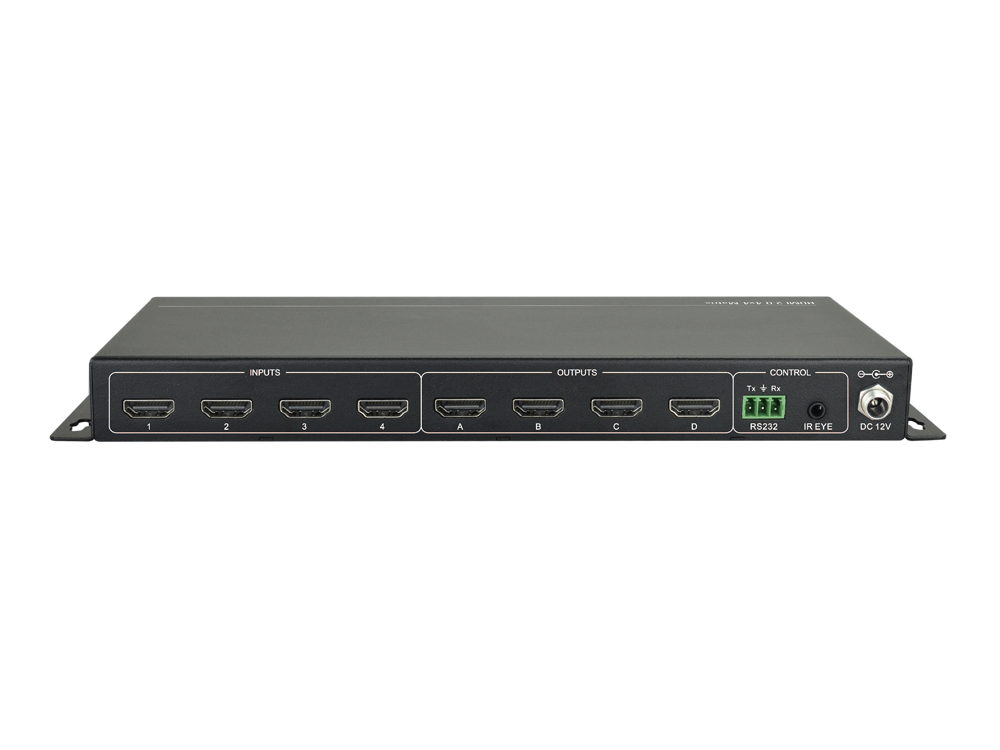

| Control Port | (1) RS232, (1) IR EYE |
| Control Connector | (1) 3-pin terminal block, (1) 3.5mm jack |
