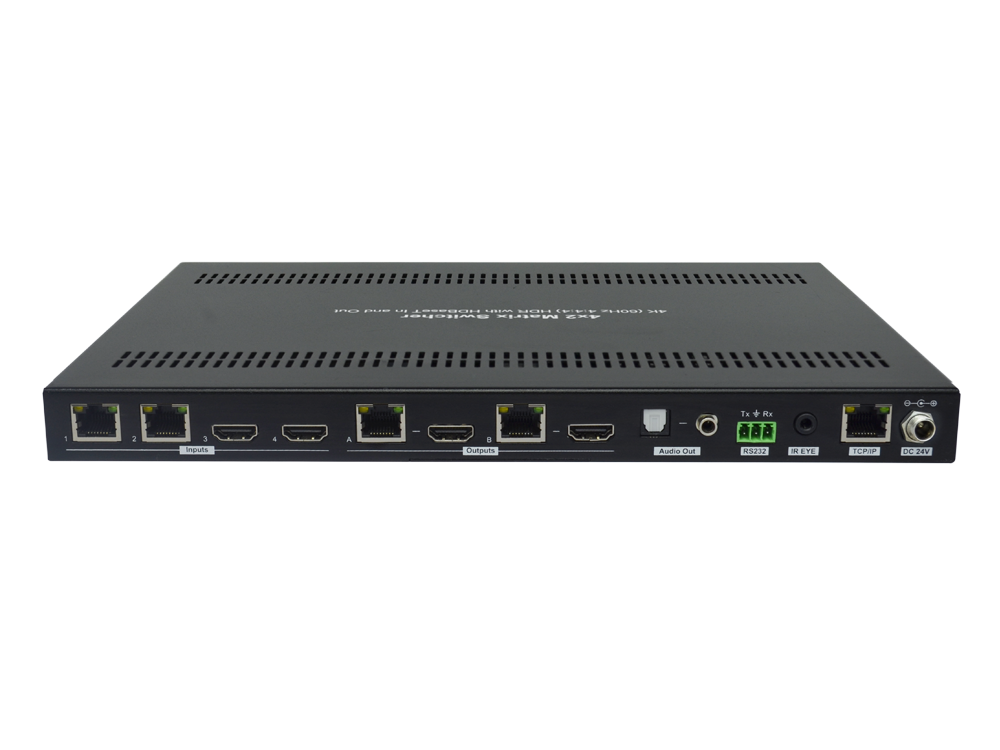

RL-MUH2-42T

RL-MUH2-42T is a professional 4×2 matrix switcher. It is a four-input by two-output matrix switcher with two HDBaseT inputs, two HDMI inputs and two HDBaseT + HDMI outputs. The switcher transmits 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx cable. The HDBaseT inputs and outputs support 48V Power over Cable (PoC) feature, allowing the compatible transmitters and receivers to draw their power from the matrix over the CATx cable. It supports downscaling so a 4K video input can automatically be down scaled to a 1080p output when connecting a display that only supports resolution up to 1080p.

SKU: 6153938460445-1-1-1-1 Category: Matrix Tag: matrixs

Product Description

4×2 matrix switcher with HDBaseT inputs and outputs.
Fully compliant with the HDMI V2.0 and HDCP 2.2.
Supports video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
Supports auto-switching.
Features two mirrored HDMI outputs for two HDBaseT outputs, and all outputs support 4K to 1080p down-scaling.
HDBaseT inputs and outputs support 48V PoC, allowing the transmitters and receivers to draw their power from the matrix switcher over CATx cables.
Visually lossless video de-compression and compression for HDMI signals transmission up to 40m at 4K and 70m at 1080p on HDBaseT inputs and outputs.
Supports Stereo + SPDIF audio outputs for audio de-embedding.
Controllable via front panel buttons, RS232, IR and TCP/IP (built-in GUI).
