RKV718PRO-V2.0

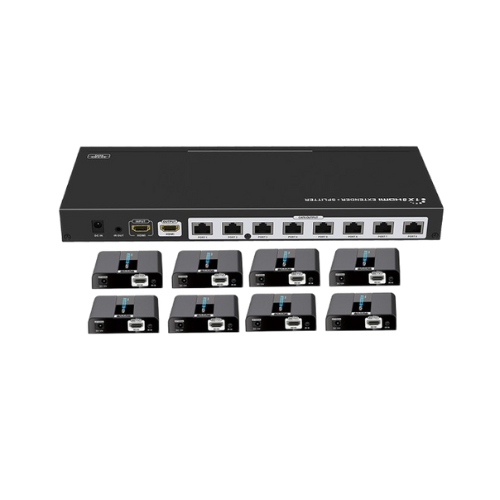

1X8 Pro Spliter with Extender

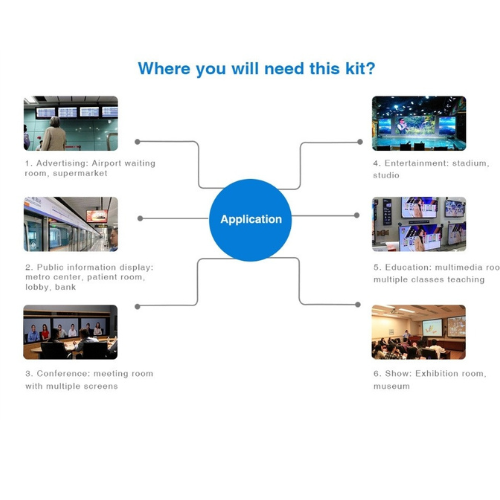

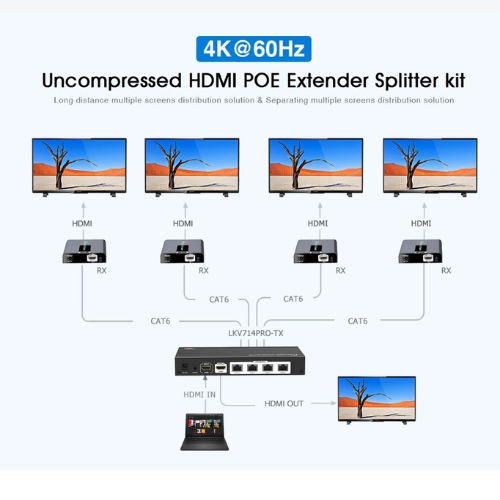

The 1×8 HDMI Extender Splitter is a device that takes one HDMI input signal and distributes it to eight HDMI displays over CAT6/7 network cables, supporting distances up to 30–80 meters depending on cable quality and resolution. It is designed for applications such as exhibitions, video conferences, and showrooms where a single source must be shown on multiple screens simultaneously

Input and Output

This splitter provides 1× HDMI input, allowing you to connect a single video source such as a PC, media player, or set‑top box. The output supports HDMI 2.0 and is compatible with HDCP 2.2, ensuring that protected digital content can be transmitted correctly to all connected displays.

Category: Splitter

Product Description

Supported Resolutions

The device supports a wide range of video resolutions, including standard and high definition formats such as 480p, 576p, 720p, and 1080p at various refresh rates like 50 Hz and 60 Hz. It can also handle higher‑resolution formats up to 3840×2160 (4K) at 30 Hz, making it suitable for modern displays that require clear and detailed images.

Power and Consumption

Power is supplied to the transmitter (TX) unit via a DC 24 V / 3 A adapter, ensuring stable operation for all eight outputs. The power consumption is rated at about 50 W for the transmitter and 6 W for each receiver (RX), which should be considered when planning power distribution for an installation.

IR Signal and Environmental Conditions

The splitter supports IR signals in the 20–60 kHz range, enabling remote control extension so that users can control the source device from the display locations. It is designed to operate reliably in working temperatures from 0°C to 60°C and can be stored between −20°C and 70°C, allowing for installation in a variety of indoor environments.
