RKV828P-N

1×8 HDMI Splitter Extender

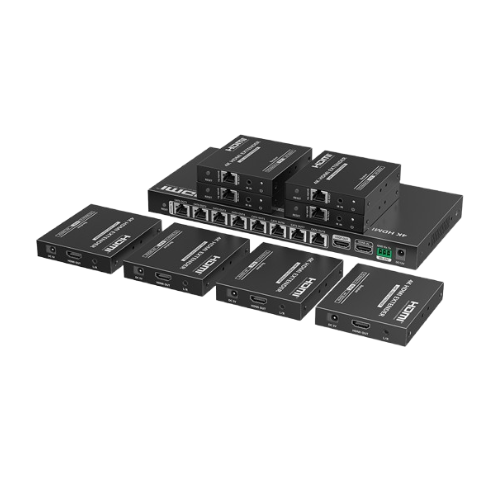

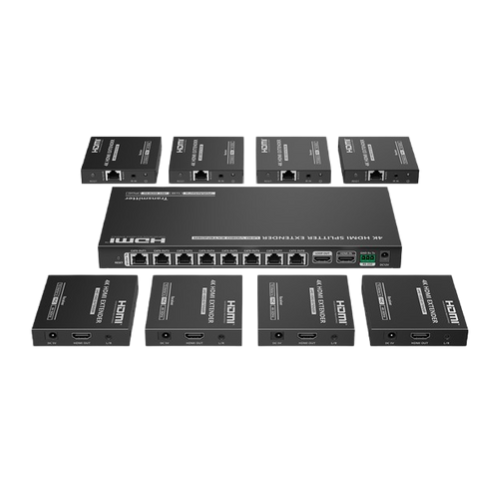

This 1×8 HDMI Splitter Extender is a professional-grade device designed to distribute a single HDMI source to eight different displays over long distances . It utilizes the ipcolor transmission protocol to ensure stable and high-quality signal transmission . The primary function of this unit is to take one HDMI input and split it into eight identical outputs, making it ideal for applications such as digital signage, large-scale presentations, and multi-room video distribution where the same content needs to be displayed on multiple screens simultaneously .

Extended Signal Transmission

This extender is capable of transmitting HDMI signals over a significant distance without degradation . By using CAT6, CAT6A, or CAT7 network cables, the device can extend the signal up to 70 meters (approximately 230 feet) . This long-range capability makes it suitable for use in large venues, commercial buildings, and educational facilities where the source device and displays are located far apart from each other .

Download Brochure

Category: Splitter

Product Description

High-Resolution Video and Audio

The device supports modern video standards, including HDMI 2.0 and HDCP 2.2, ensuring compatibility with the latest 4K content and displays . It handles a wide range of video resolutions, from standard definition up to 4K at 60Hz . In addition to high-resolution video, it supports various audio formats to deliver a complete audiovisual experience, including LPCM, DTS, and Dolby Digital for both 4K and 1080p resolutions, as well as 5.1/Dolby Digital Plus .

Robust System Protection

Built to withstand electrical disturbances, this splitter extender features multiple layers of protection . It includes robust ESD (Electrostatic Discharge) protection, with Level 2 protection for both contact and air discharge, compliant with the IEC61000-4-2 standard . Furthermore, the device is equipped with both lightning and surge protection, safeguarding the connected equipment from power fluctuations and electrical storms, which enhances its reliability in various installation environments .

Control and Connectivity

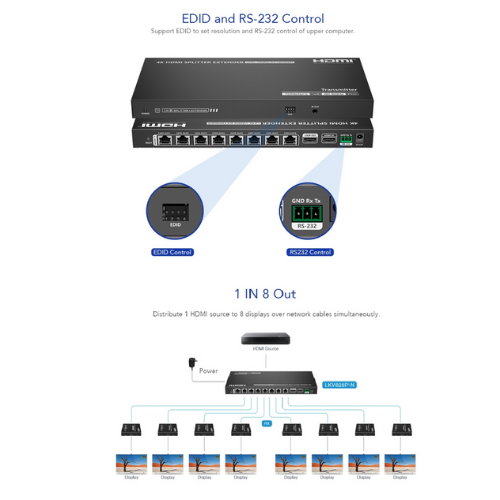

For enhanced control and integration into professional AV systems, the unit includes an IR passback function . This feature allows the user to control the source device from the remote display location using a standard remote control, supporting IR frequencies from 20KHz to 60KHz . Additionally, it is equipped with an RS-232 serial port for more advanced control and integration with third-party automation systems, following standard RS-232 communication levels .

Industrial Design and Power

The extender is housed in a durable black iron casing, designed for reliability and longevity in commercial or industrial settings . The transmitter (TX) requires a DC12V/3A power supply, and the total power consumption for the transmitter and receiver (RX) pair is less than 24 watts . It is designed to operate in a wide range of environmental conditions, with a working temperature range of -20°C to 60°C and a storage temperature range of -30°C to 70°C, and it can operate in humidity levels from 0% to 95% without condensation .
