RKV318HDR-V3.0

1×8 4K60HZ HDMI SPLITTER

The image describes a 1×8 HDMI splitter that takes one HDMI input and distributes the signal to eight HDMI outputs, supporting up to 4K resolution at 60 Hz for use with devices like set-top boxes, DVD/media players, laptops, DVI/HD players, and compatible 3D and 4K displays .

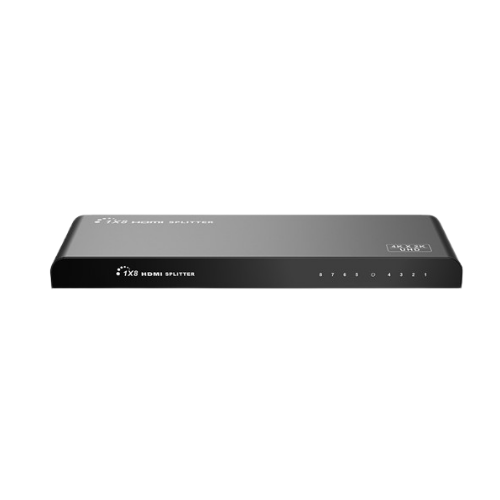

1×8 4K60HZ HDMI SPLITTER RKV318HDR-V3.0

This 1×8 HDMI splitterallows asingle HDMI source to be displayed on up to eight screens at the same time, making it suitable for home theaters, offices, classrooms, and digital signage setups where one source must feed multiple TVs or monitors . It supports modern video formats including 4K at 60 Hz and 3D, ensuring smooth, high‑quality visuals on all connected displays .

Key features

Thesplitteris compatiblewith HDMI 1.4 and HDMI 2.0 standards and supports HDCP 1.4 and HDCP 2.2 content protection, so it can handle most current Blu‑ray players, streaming devices, and game consoles . It also supports standard audio signals and high‑quality digital formats such as DSD and HBR audio, preserving sound quality across all outputs .

Download Brochure

Category: Splitter

Product Description

Ports and indicators

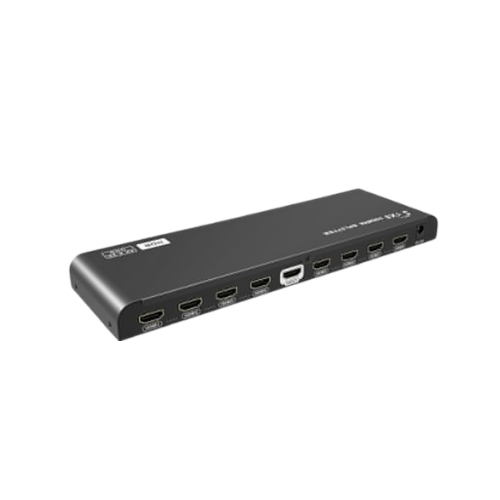

Thedeviceprovides 1 HDMI inputportand 8HDMI output ports, letting one source drive eight separate displays simultaneously . There is 1 power indicator LED and 8 signal indicator LEDs, so users can quickly see power status and which output ports are active .

Video and signal specifications

Supported resolutions rangefromSDup through 480i/480p, 576i/576p, 720p, 1080i, and 1080p, up to 4K×2K at 24/25/30/60 Hz, covering nearly all common HDTV and UHD formats . The frequency range is specified as 25 MHz to 600 MHz with an input and output TMDS signal level of 0.7–1.5 Vp‑p, and the unit supports 3D video, 4K×2K 60 Hz ultra HD, and HDR content .

Control, power, and physical details

Thesplittersupports a 5 Vpp TTL DDC signalforEDIDand related HDMIcontrol data, helping displays and the source negotiate correct video modes automatically . It operates from 0 °C to 60 °C ambient temperature, uses a 12 V/1 A power supply with power consumption under 8 W, and has dimensions of approximately 262 mm (L) × 81.6 mm (W) × 23.5 mm (H), a weight of about 453 g, and a black color finish .

Network Transmission Feature

Onemore important featureof this 1×4 HDMI Splitter Extenderisits ability to send HDMI signals over standard CAT5/5e/6 network cables, allowing a transmission distance of up to 120 meters between the transmitter and receiver units. This long‐distance transmission capability makes it highly suitable for large venues such as auditoriums, shopping malls, and multi‐room setups, where running long HDMI cables would be expensive or impractical, while still maintaining stable high‐definition video and audio quality on all connected displays.
