RKV501HDR-V3.0

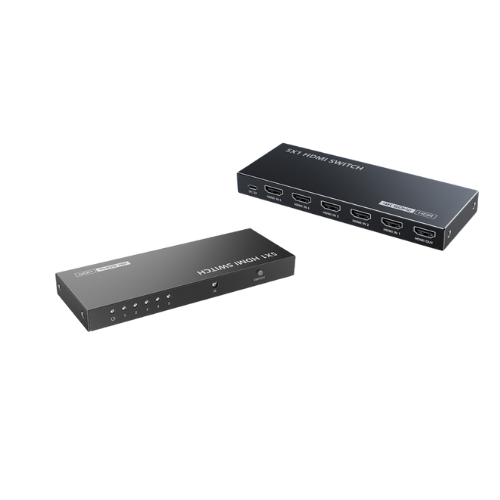

5 port 4K60HZ HDMI Switch

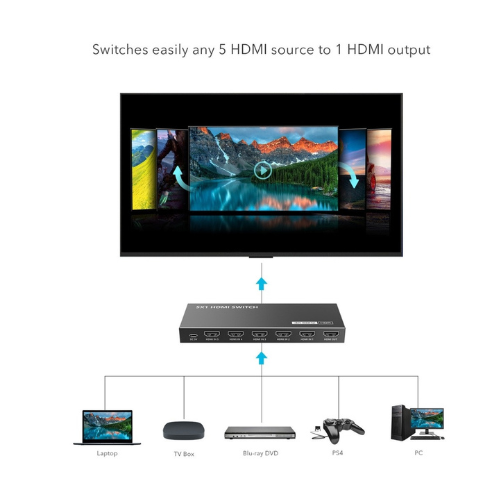

Theimagedescribes a 5×1 HDMI Switch 4K@60Hz, which allows five different HDMI source devices to be connected to a single HDMI display while supporting up to 4K resolution at 60 Hz. This type of switch is useful when a TV or monitor has limited HDMI inputs but multiple devices such as game consoles, media players, or computers need to share the same screen.

Ports and Indicator Lights

Theswitch provides 5 HDMIinput ports and1HDMI output port, so up to five source devices can be connected and routed to one display. It includes a single power indicator LED to show when the unit is powered on, and five separate signal indicator LEDs to show which input is currently active.

Download Brochure

Category: Switcher

Product Description

HDMI and HDCP Support

Thisdevice is compatiblewith HDMI 1.4 andHDMI 2.0 standards, which enables it to handle both standard Full HD and modern 4K video formats. It also supports HDCP 1.4 and HDCP 2.2 copy‑protection protocols, so it can work with most Blu‑ray players, streaming boxes, and other protected digital content sources.

Video and Audio Capabilities

Theswitch supports 12bit Full HD video,3Dvideo, and4K resolution at 30 or 60 Hz, making it suitable for UHD and HDR content on compatible displays. It can handle standard digital audio formats as well as DSD (Direct Stream Digital) and HD (HBR) audio, ensuring high‑quality sound transmission alongside the video signal.

Signal Specifications and Resolutions

Thespecified I/O TMDSsignalrange is 0.7–1.2Vpp,and theDDC signallevel is5 Vpp,which are typical values for reliable HDMI signal integrity over standard cable lengths. Supported HDMI output resolutions include 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920×1200, and 3840×2160 (4K) at various refresh rates including 24, 25, 30, 50, and 60 Hz depending on the mode.
