RL-VW22

RL-VW22 is the 4K HDMI Video Wall Processor. The unit supports 1 HDMI input and 4 HDMI outputs. HDMI input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution is fixed to be 1920x1080p@60Hz. It supports 9 video wall modes, which can be selected via front panel button and IR remote.

Category: Matrix Tag: matrixs

Product Description

HDMI input up to 4Kx2K@60Hz 4:4:4.
HDCP 2.2 and 1.x compliant.
Four HDMI output resolution fixed to be 1920x1080p.
Built in automatic up & down-scaling to 1080p output.

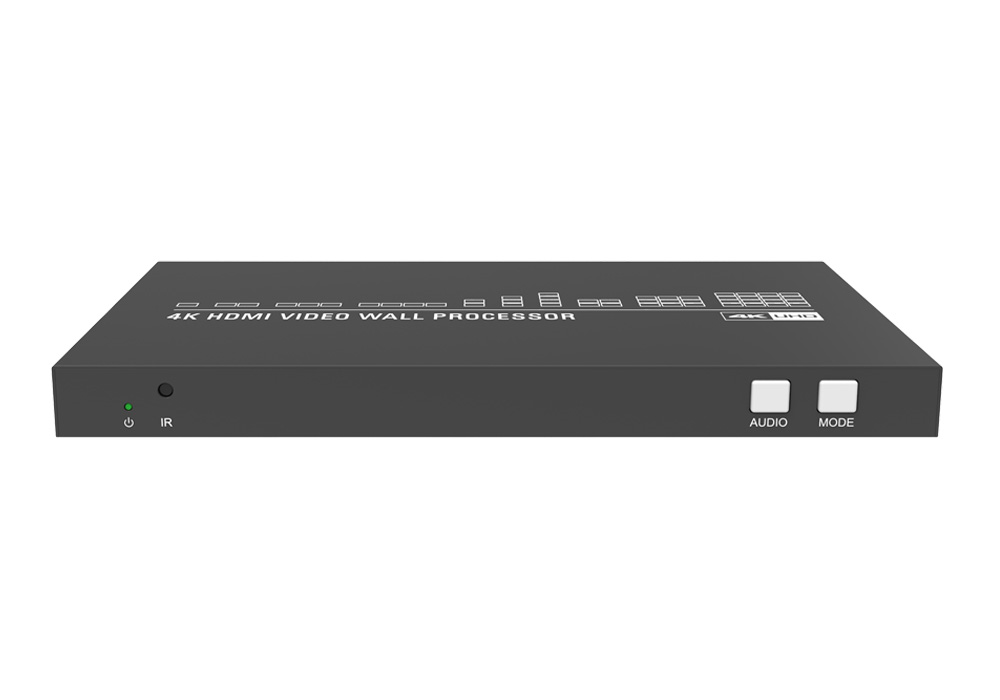

Controlled by front panel button and IR remote.
Nine video wall modes (1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1, 2×2, 2×2 Rotation) selectable.

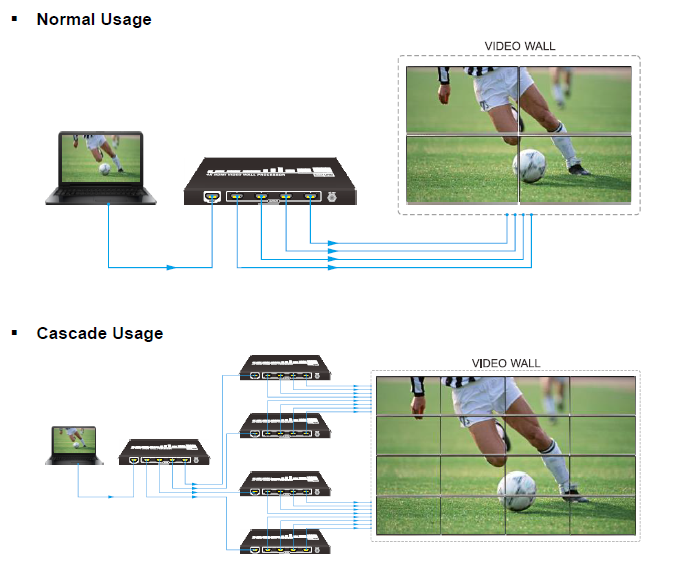

Cascadable for larger system.
Mute & Unmute optional for audio output.

Specification

Video Input	–

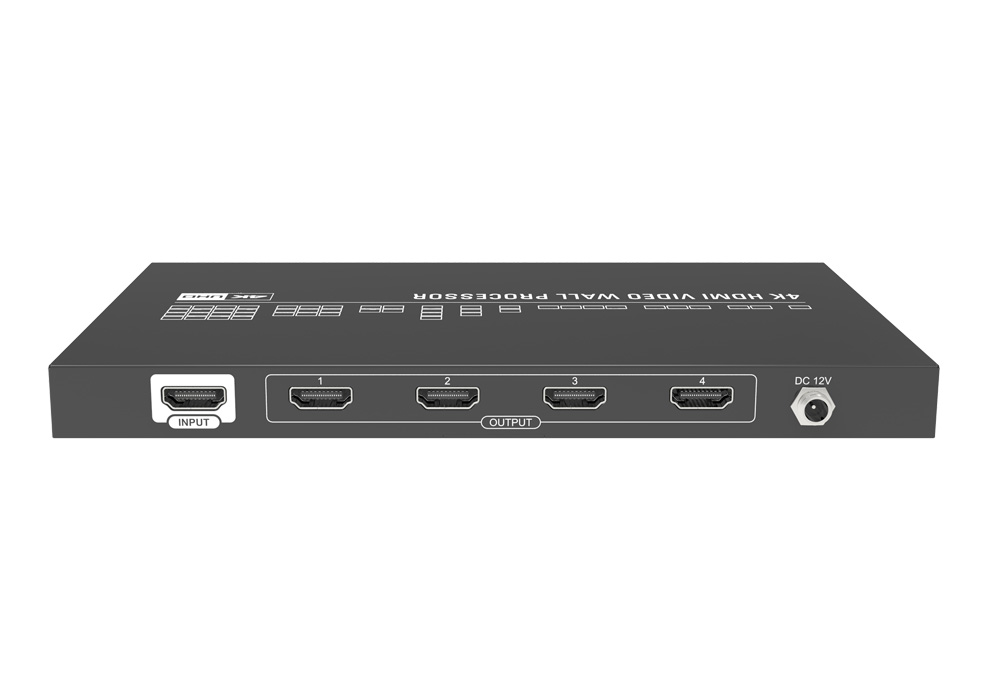

Input	(1) HDMI IN
Input Connector	(1) 19-pin type-A female HDMI
Video Output	–
Output	(4) HDMI OUT
Output Connector	(1) 19-pin type-A female HDMI
Resolution	1920x1080p@60Hz
General	–
HDMI input Version	Up to HDMI 2.0
HDCP input Version	Up to HDCP 2.2
Audio Format	Supports PCM2.0
Power Supply	Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Power Consumption	11W (Max)
Operation Temperature	-5 to +55°C (+23 to +131°F)
Storage Temperature	-25 to +70°C (-13 to +158°F)
Relative Humidity	10% to 90%, Non-condensing
Dimensions (WHD)	210mm x 18mm x 110mm
Net Weight	550g
