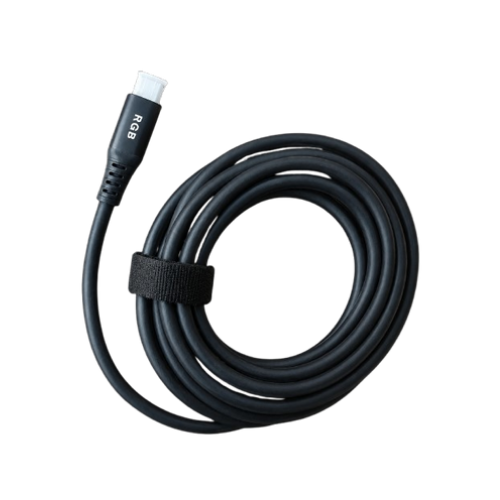

RL- USB -CC Series

USB3.2 C TO C 100W TWISTED CORE

Thishigh-performance USB 3.2C to C cableis designedfor demandingconnectivity applications. Featuring a durable construction with a copper core, a PVC jacket, and aluminum alloy housing, the cable utilizes aluminum foil and al-mg shielding to ensure reliable performance. It is finished in black and equipped with nickel-plated connectors, offering a robust solution for high-speed data transfer, rapid charging, and high-resolution video output.

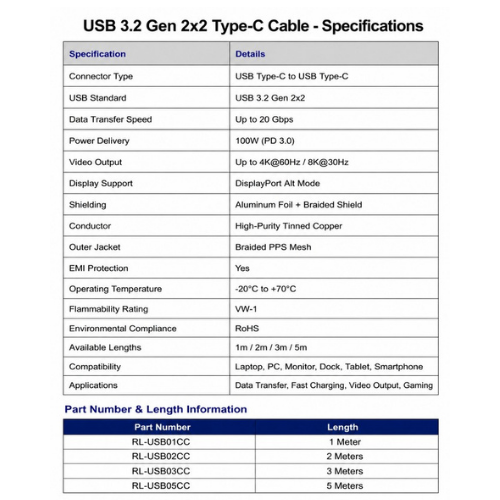

Technical Specifications

The cablesupportshigh-speeddata transmission at20Gbps andprovides up to 100W Power Delivery (PD 3.0) for fast charging. It is capable of supporting video output at 4K resolution at 60Hz or 8K resolution at 30Hz when used with compatible devices. Key physical and environmental specifications include a length of 5m, an outer diameter of 5.0 \pm 0.2 mm, and an operating temperature range that spans from -20^\circ\text{C} to +70^\circ\text{C}. Additionally, the cable meets the VW-1 flammability standard and is RoHS compliant for environmental protection.

SKU: RL-HDS-B41A Category: Aoc Cable

Product Description

Applications and Compatibility

The cable’s full-featured design makes it highly versatile for various professional and personal uses, including high-speed data transfers for external SSDs and high-bandwidth peripherals. It is an ideal choice for quick charging laptops, tablets, and smartphones, as well as enabling video displays for compatible monitors and docking stations. Furthermore, the cable is well-suited for gaming and VR setups requiring low-latency connections, and it provides reliable connectivity for professional workstations used in video editing, 3D rendering, and multi-device configurations.
