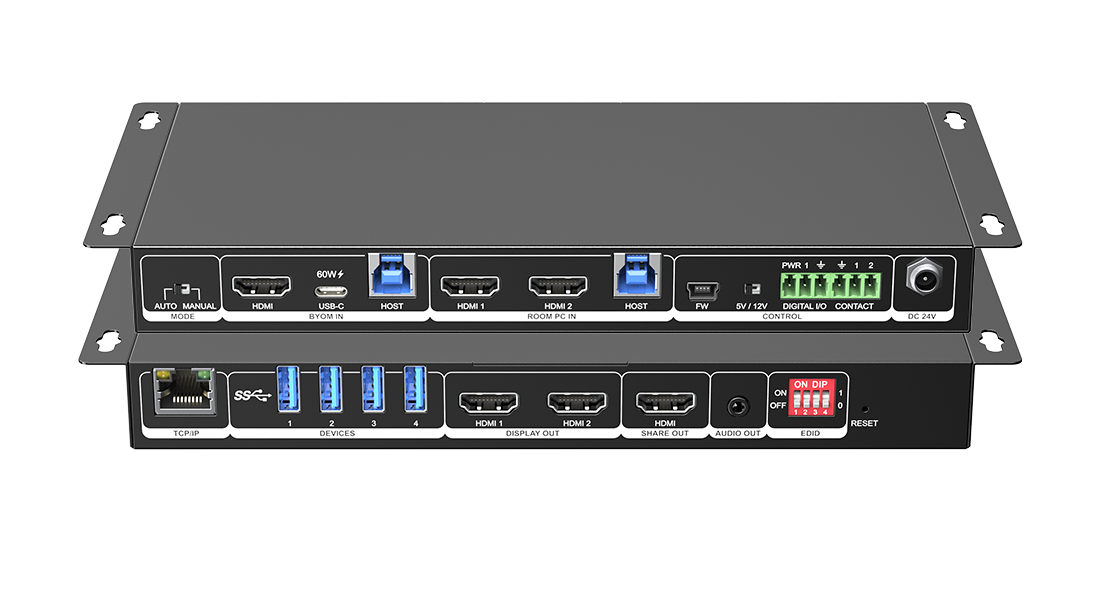

RL-SUH43-KVM

RL-SUH43-KVM HDMI 2.0 is a Web-Conferencing Room Switcher! It simplifies meeting room and presentation space system integration by providing two video mode (BYOM mode and Standard mode) with three HDMI inputs, one USB-C input and three HDMI output. The USB-C input supports video, data (USB host) and power charging up to 60w. There is a 4 port USB client hub built with 3 USB host ports that can be switched independently.

Category: Switcher Tag: Switchers

Product Description

HDMI 2.0 and HDCP 2.2 compliant.
Video resolution up to 4K@60Hz 4:4:4, 8bit deep color.
Supports auto switching.
USB-C input supports power charging up to 60w.
Provides an audio output for audio de-embedding.

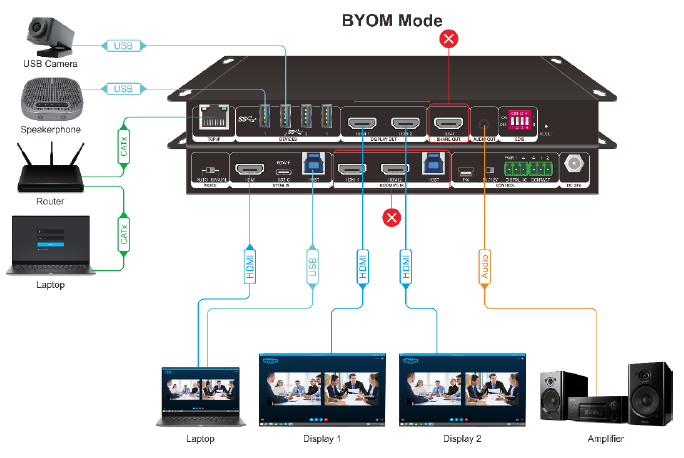

Automatically switch between the dedicated room system and bring your own meeting (BYOM). Supports audio output volume control.
Use the same Laptop cable between wired screen sharing and bring your own meetings.
Send CEC signals to the room displays via events and built-in scheduler.
Supports EDID management.
Occupancy sensor integration.
Controllable via TCP/IP, Digital I/O, contact and front panel

Specification

Video Input	–
Input	(3) HDMI, (1) USB-C
Input Connector	(3) Type-A female HDMI, (1) USB-C
Input Video Resolution	Up to 4K@60Hz 4:4:4, HDR
Video Output	–
Output Video Resolution	HDMI: Up to 4K@60Hz 4:4:4, HDR
Audio Output	–
Output	(1) AUDIO OUT
Output Connector	(1) 3.5mm Jack
Frequency Response	20Hz to 20kHz, ±3dB
Max Output Level	2.2 ± 0.1Vrms
THD+N	< 0.1%, 20Hz to 20kHz bandwidth, 1 kHz sine at 0dBFS level (or max level)
SNR	> 80dB, 20Hz to 20kHz bandwidth
Crosstalk Isolation	< -70 dB, 10kHz sine at 0dBFS level
L-R Level Deviation	< 0.3 dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output Load Capability	1kΩ and higher (supports 10x paralleled 10KΩ loads)
Noise Level	– 75dB
