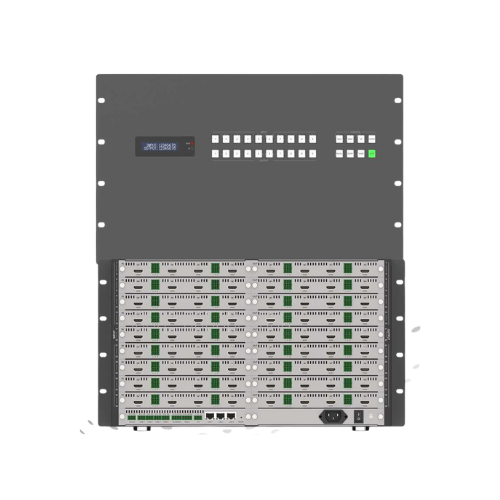

RL-HDP-MX93636M
36×36 HDMI 2.0 Seamless Modular Matrix
Product Features
- 36×36 seamless modular matrix
- HDMI 2.0b, HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4
- HDR, HDR10, HDR10+,Dolby Vision pass through
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- 4-input or 4-output for each card
- Input card: HDMI/DVI/VGA/HDBT/FIBER/SDI/IP(H.265/JPEG2K/SDVOE)
- Output card: HDMI/HDBT/FIBER/SDI/IP(H.265/JPEG2K/SDVOE)
- Input card supports audio embedded
- Output card supports audio de-embedded
- Advanced EDID management
- Built-in smart control system with user friendly interface
- Front panel button, IR, RS-232, TCP/IP and Web/PC GUI control
