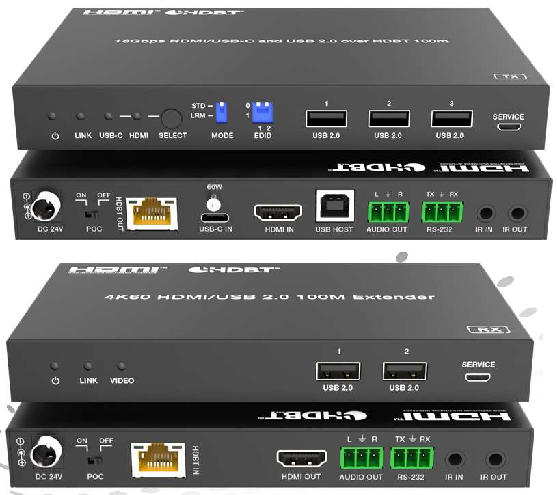

RL-HDP-EHB100HCU
HDBaseT 2.0 Extender 100m with USB-C/HDMI Inputs
Product Features
- HDMI 2.0b, HDCP 2.2 compliant
- Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- HDR, HDR10, HDR10+, Dolby Vision pass through
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Up to 100 meters using CAT6/6A cable
- USB-C and HDMI two inputs support auto or manual switching mode
- USB-C supports ALT-DP mode for A/V, USB 2.0 data and power charging up to 60 watts
- 4K to 1080p downscaling features on HDMI output, no frame rate conversion
- EDID management
- TX/RX both support analog audio de-embedding
- TX supports USB 2.0 Hub with 3 local USB client ports
- USB 2.0 high speed, two-way IR and RS-232 transmission
- Two-way 24V PoC (Power over Cable)
