RL – DSP100AIO

RGB logic Av All in one DSP

RGB Logic AV DSP is the ultimate choice for a high-definition audio signal processor. The most powerful HD audio available, it delivers full, continuous presence meetings with multi-location voice conferencing over its four inputs and two-output DSP, ideal for local sound reinforcement. Highly scalable and flexible, RGB Logic AV multichannel console DSP provides an HD voice communications platform. This powerful, fault-tolerant solution is ideal for the communications needs of large enterprises as well as service providers looking to offer video conferencing services. Advanced design – This is the most powerful and up-to-date microphone mixer, DSP, and amplifier available in the industry today. It is compact, simple, and extremely user-friendly, allowing you to do large-scale video conferencing from a compact audio system.

Product Features

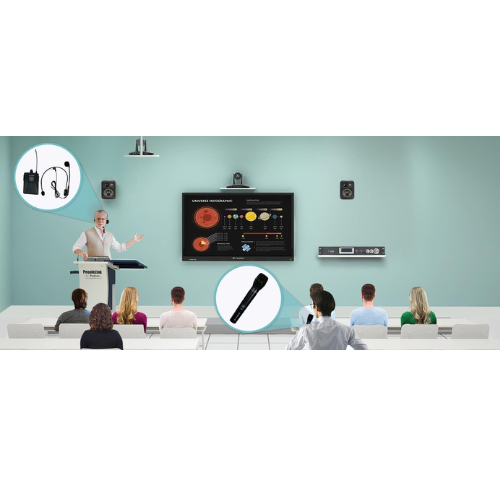

Range : Wide operating range of 100 feet Power Supply Safety : Power Supply Unit with Short Circuit, Overload and Over Voltage Protection SMT Circuit : Surface Mount Technology (SMT ) Circuit Efficiency : High efficiency of ~90% Current : Very low quiescent current. It Can run on an inverter. Circuit : Technology (SMT) Circuit Integrated Self-Protection Frequency lock : Quartz-locked frequency Area of application : Classrooms, Training Rooms Capacity : 40 to 60 seater Chassis : 19-Inch chassis 1.5U (Rack Mountable) DSP with Inbuilt amplifier with wireless microphone System

Download Brochure

Category: All in one DSP

Product Description

Transmission Distance and Connectivity

The device provides impressive transmission distances, managing up to 100 meters for 4K/1080P signals over CAT6/7 cables, and even up to 150 meters in HDBaseT Long Reach Mode for 1080P content. The transmitter and receiver feature multiple input and output ports, including HDMI, USB, IR, and RS-232, supporting KVM extension and control interfaces ideal for demanding configurations such as boardrooms and control centers

Special Features and Applications

Beyond standard AV extension, the HDBaseT 3.0 Extender supports advanced features such as RS- 232 signal transmission, bi-directional IR, USB2.0 signal transfer, and seamless KVM operation. These capabilities make the device highly suitable for environments requiring extensive AV and control linkages—such as auditoriums, educational institutions, and surveillance systems—maximizing both functionality and efficiency .

Technical and Mechanical Specifications

Encased in a robust metal enclosure and finished in black, both the transmitter and receiver units are compact (144mm x 78mm x 23mm) and lightweight. They operate via AC 100-240V/24V power supplies and consume 14.28W on PoC. These physical and electrical specifications make the units durable and suitable for varied installation environments .

Network Transmission Feature

Onemore important featureof this 1×4 HDMI Splitter Extenderisits ability to send HDMI signals over standard CAT5/5e/6 network cables, allowing a transmission distance of up to 120 meters between the transmitter and receiver units. This long‐distance transmission capability makes it highly suitable for large venues such as auditoriums, shopping malls, and multi‐room setups, where running long HDMI cables would be expensive or impractical, while still maintaining stable high‐definition video and audio quality on all connected displays.
