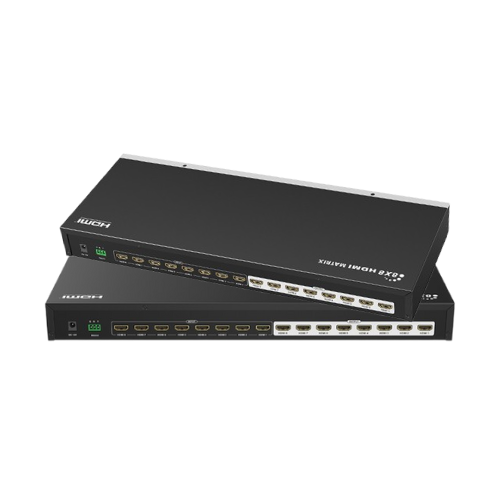

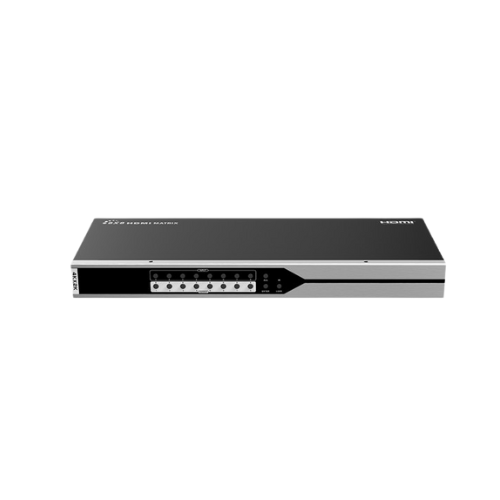

RKV818

4k60hz 8X8 HDMI Matrix switcher

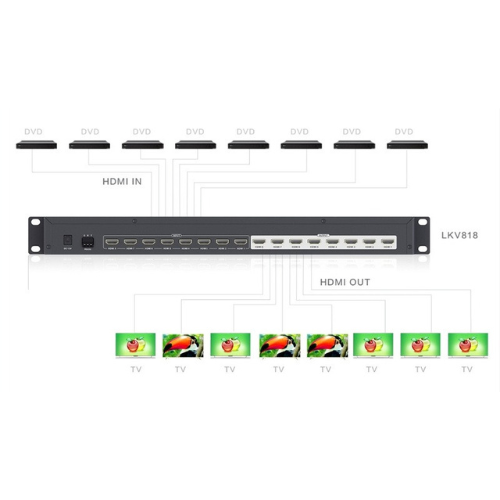

This product is a 8×8 HDMI™ Matrix Switch, with 8 HDMI™ inputs and 8 HDMI™ outputs. 8 HDMI™ inputs accommodate the simultaneous connection up to 8 high definition video sources, such as satellite systems and Blu-ray players.

4k60hz 8X8 HDMI Matrix switcher Model Number : RKV818

The8x8HDMIMatrix Switch 4K@30Hzisaversatile device designed to handle up to eight HDMI input sources and eight HDMI output displays simultaneously, supporting high- definition video signals up to 4K resolution at 30Hz. It is ideal for environments requiring flexible AV signal management such as security systems, monitoring setups, conference rooms, and educational facilities .

Download Brochure

Category: Matrix Switcher

Product Description

Signal and Interface

Thismatrix switch utilizes HDMI 1.4technology and is fully compatible with HDCP1.4 copyright protection standards, ensuring reliable and secure transmission of audiovisual content. It accepts up to eight HDMI input signals and distributes them to eight HDMI outputs, making it suitable for both complex and straightforward setups .

Supported Resolutions

Thedevicesupportsawiderange of resolutions, including 480i, 480p, 576i, 576p, 720p, and 1080p at various refresh rates, as well as 4K@30Hz. This flexibility allows users to connect different types of source devices such as Blu-ray players, satellite systems, gaming consoles, and HD streaming devices, ensuring compatibility for virtually any AV scenario .

Audio and Video Formats

Audiosupport includes advancedformats like DTS-HD, Dolby-true HD, LPCM7.1, DTS, Dolby-AC3, and DSD, with color coding of YUV 4:2:2. The video signal path is robust, with support for voltage levels between 0.5 and 1.5Vp-p(TTL), catering to a variety of professional AV needs. The device’s video bandwidth is rated at 340MHz, guaranteeing smooth and seamless signal switching and output .

Network Transmission Feature

Onemore important featureof this 1×4 HDMI Splitter Extenderisits ability to send HDMI signals over standard CAT5/5e/6 network cables, allowing a transmission distance of up to 120 meters between the transmitter and receiver units. This long‐distance transmission capability makes it highly suitable for large venues such as auditoriums, shopping malls, and multi‐room setups, where running long HDMI cables would be expensive or impractical, while still maintaining stable high‐definition video and audio quality on all connected displays.
