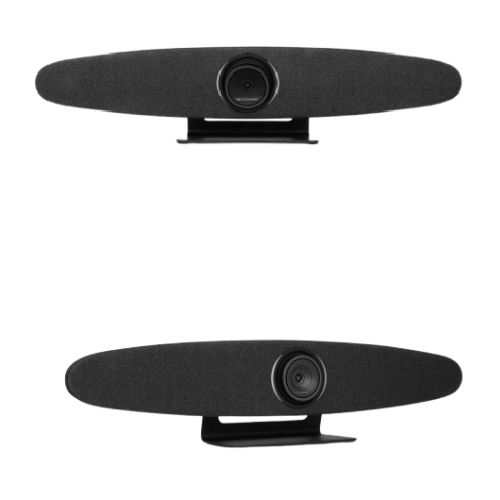

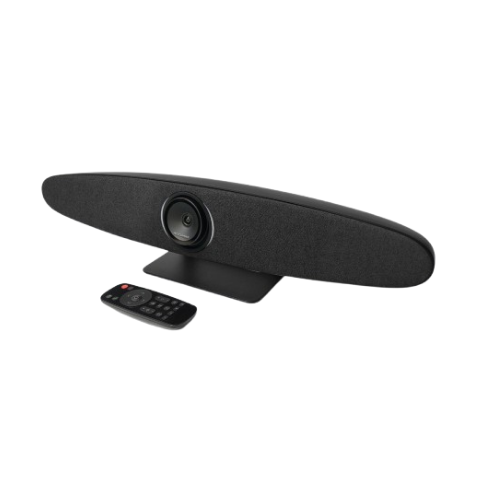

RGB-C10 All-in-one 4K UHD USB Video Bar

4K UHD USB Video Bar with Auto-Framing & Voice Tracking

The RGB-C10 Video Bar is built for huddle and small meeting rooms, offering 4K UHD video with an 8.51MP sensor and backward compatibility for 1080p/720p. It features Al-powered voice tracking and auto framing to keep participants in focus. Advanced 3A algorithms ensure clear, full-duplex audio, with echo cancellation and noise suppression for uninterrupted calls. Compact and easy to install, the RGB-C10 supports Zoom, Teams, and other platforms, making it ideal for small teams and professional collaborations

4K UHD 121° Wide View Angle

121° wide field of view (110° horizontal field of view), built-in PTZ (pan and tilt ±15°), making it easier for attendees to enter the conference meeting. The mic’s 19.7-foot (6m) audio pickup radius catches audio from all attendees in the conference room.

3-in-1 Design

Capture every detail with an 8MP 1/2.8- inch image sensor and a 120° ultra-wide field of view. Whether your team is seated or standing, everyone stays clearly visible. The electric lens cover adds an extra layer of privacy when the meeting ends.

Download Brochure

Category: Video Bar

Product Description

Professional Audio Output

High signal-to-noise ratio digital microphone array, primary microphone and extended microphone cascade design, automatic beamforming 360° omnidirectional long distance straightforward voice pickup, effectively improve the quality of conference room audio calls. The mic’s 19.7-foot (6m) audio pickup radius catches audio from all attendees in the conference room.

Empower Your Meeting with Al

The Built-in intelligent analysis algorithm supports audible position identification and intelligent linkage ePTZ function, the speaker can be automatically tracked, and it intelligently switches the speaker screen to ensure that the speaker is always clear in the screen. Adjust the
screen ratio according to the change of the number of participants to present a better meeting effect.

Key Specifications

Video Resolution:4K/30, 1080P/30, 720P/30 etc
Sensor:1/2.5 inches, CMOS, Effective Pixels
Lens:121° (DFOV), 110° (HFOV), 75° (VFOV), 5x digital zoom,Horizontal/pitch ±15°
Tripod Head:Mechanical PTZ (MPT) + e-PTZ (EPTZ)
Digital Noise Reduction :2D & 3D Digital Noise Reduction
Type of Connection :USB 3.0, backward compatible with USB 2.0
Color System / Compression: MJPEG /YUY2
USB Audio:32K sampling rate, UAC1.0 support
Full-Frequency Speaker:96 dB SPL at 0.5 m
Microphone Array:Beamforming microphone with a pickup distance of 6m
HD Output:1 x HDMI, Version 1.4b
USB Interface:1 x USB3.0, Type C; 1 x USB2.0, Type A
Wireless:Bluetooth data communication (Bluetooth 5.0)

Network Transmission Feature

Onemore important featureof this 1×4 HDMI Splitter Extenderisits ability to send HDMI signals over standard CAT5/5e/6 network cables, allowing a transmission distance of up to 120 meters between the transmitter and receiver units. This long‐distance transmission capability makes it highly suitable for large venues such as auditoriums, shopping malls, and multi‐room setups, where running long HDMI cables would be expensive or impractical, while still maintaining stable high‐definition video and audio quality on all connected displays.
