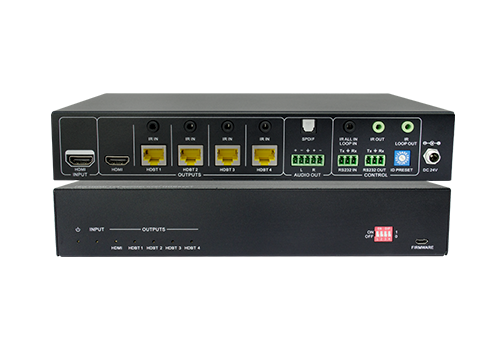

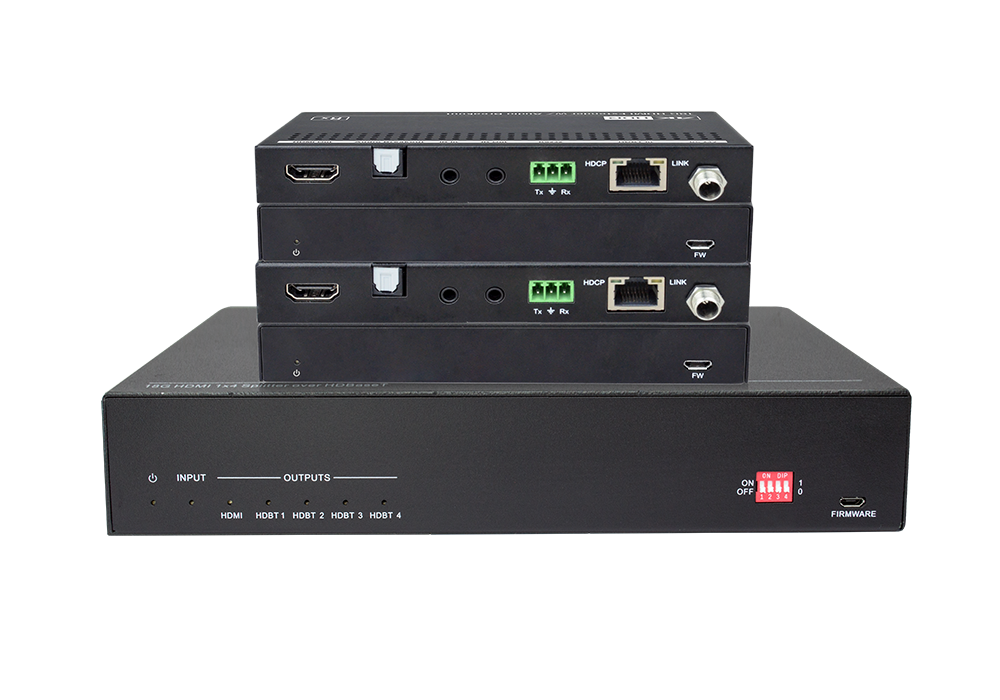

RLHT-4T-H2 KIT

RLHT-4T-H2 KIT iS a 1×4 HDBaseT Splitter Kit. It accepts a single HDMI input and splits it into one HDMI and four HDBaseT outputs. The splitter is designed with an IR loop out and loop in which are intended to cascade to additional units. It supports video resolutions up to 4K@60Hz 4:4:4 8bit and all HDMI audio formats. It can extend 1080p signals on each output to distance up to 229 feet (70 meters) and 4K signals to distance up to 131 feet (40 meters) over a single CATx Ethernet cable. It supports the Power over HDBaseT (PoC) feature, which allows the receivers to be powered from the splitter over the Ethernet cables. It supports bidirectional IR pass-through and IR, RS232 cascade control.
