RL-SC-61E

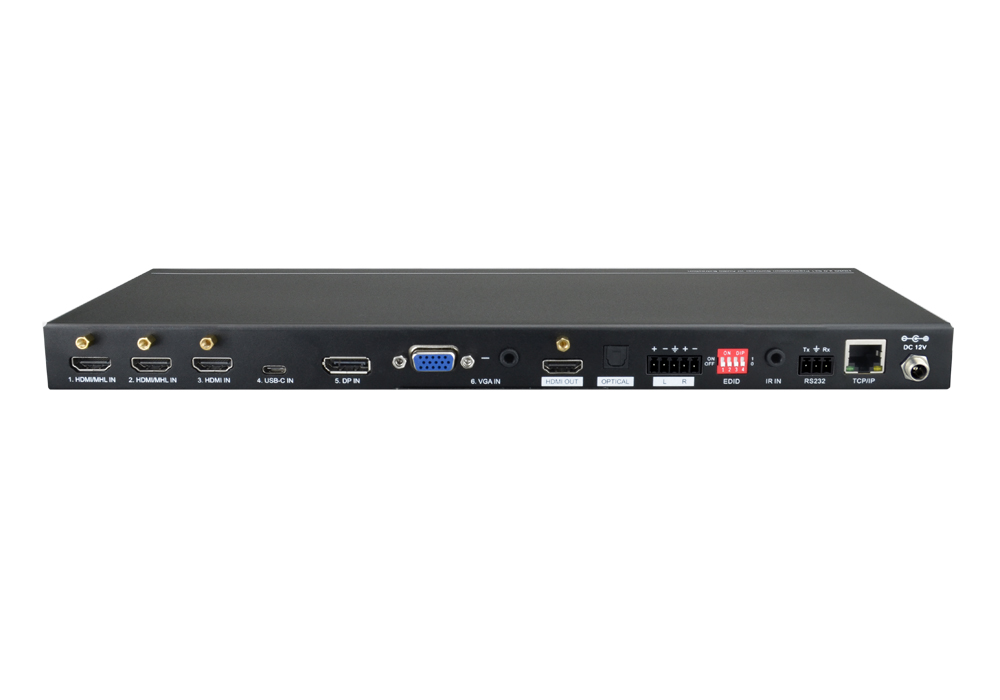

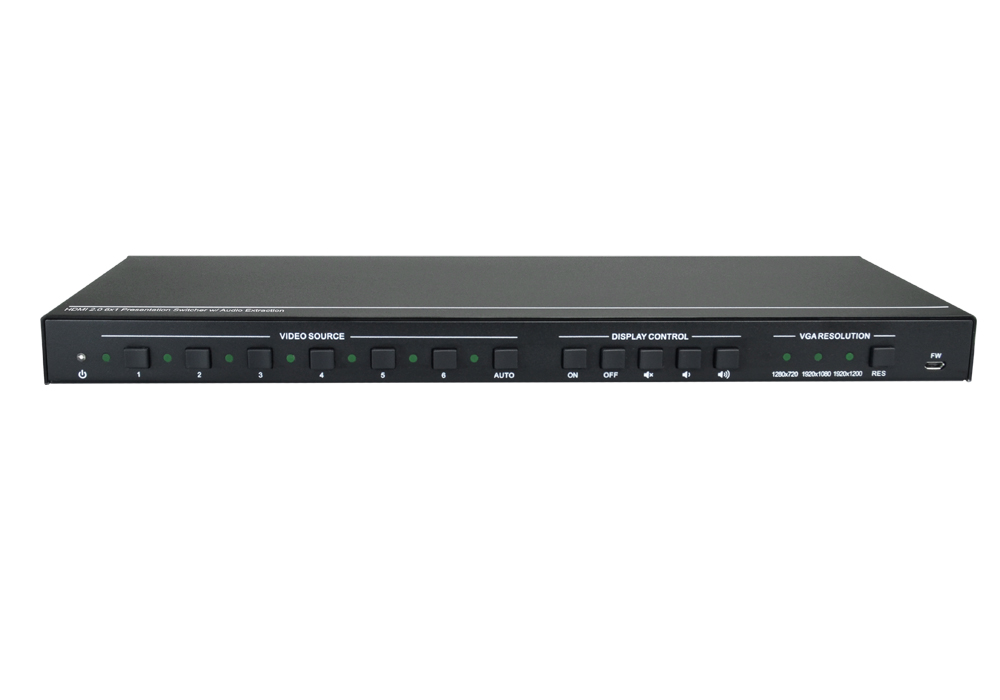

RL-SC-61E is the HDMI 2.0 6×1 Presentation Switcher which allows selection of six different sources (three HDMI inputs, one USB C input, one DisplayPort input and one VGA input), and will switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8 bit , 1080P and 3D In addition, there is the smart built in EDID setting can be selected by the 4 pin DIP switch on the rear panel. It supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to an optical digital audio output and a balanced analog audio output. It features multiple methods of control. When in the AUTO mode the switcher will automatically switch to the first detected source device When the active source is removed, the switcher will switch from input 1 to 6. The switcher can be manually controlled by the front panel buttons.
